Jul 21,2024

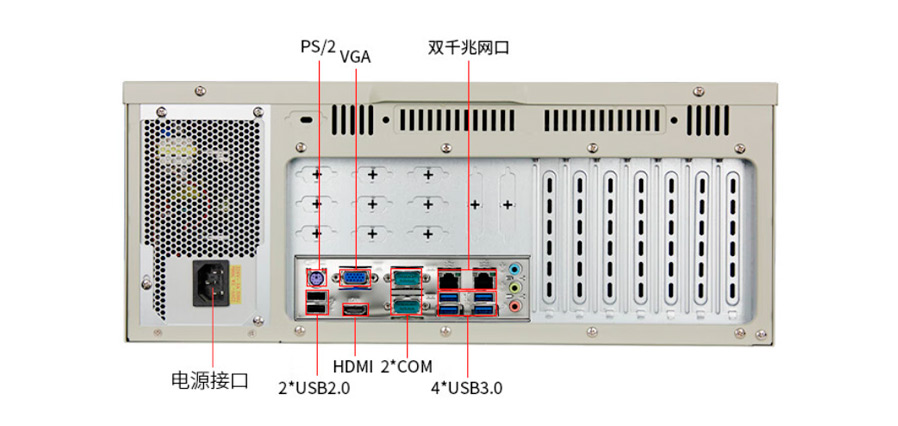

VMLINK 4U rackmount industrial computer, ADLINK motherboard industrial automation control host.
Intel 6th/7th Gen i7/i5/i3 Processors
1 PCle x16, 1 PClex4, 5 PCI
Supports up to 32GB of memory
6 COM Ports
Industrial-grade motherboard, diverse expansion options, 5*PCI, 1*PCIE×16, 1*PCIE×4.
Rich interfaces, easy to use.
Multi-system compatibility: Comes pre-installed with a trial version of Windows by default. For other operating systems, please contact customer service.
Multi-scenario applications, wide industry applicability: Strong compatibility, smooth operation of software across various industries.
| Model | lPC-610-M43H |
| Processor | 6/7th Gen Intel® Core™ i7/i5/i3 processors support |
| Chipset | Intel H110 |
| Memory | 2 x DDR4 2133/2400MHz, up to 32GB |
| Storage | 4 x SATA 6.0 Gb/s connectors |
| Display | 1x VGA connector(rear), resolution up to 1920 x 1200 @ 60 Hz 1x HDMl connector (rear) resolution up to 4096 x 2160 @ 24 Hz |
| Network | LAN1: Intel® I219-LM with 10/100/1000 Mbps via RJ-45 connector (rear) LAN2: Intel® l225-V with 10/100/1000 Mbps via RJ-45 connector (rear) (Microsoft doesn't released WIN 7 driver. l225 supports WIN 10 only) |
| Serial port | 2x RS-232/422/485 with auto flow control connector (rear) 4x RS-232 pin headers |
| USB | 4×USB3.0，6×USB2.0 |
| AUDIO | RealtekR ALC888S; supports1x Mic-in, 1x Line-out and 1x Line-in connector (rear) |
| Other I/O | 1x LPT pin header 1x PS/2 |
| Watchdog | Software programmable and can be generate system reset |
| Expansion Interface | 5×PCI2.2 1×PCI-E16X Gen3 1×PCI-E 4X Gen2 |
| OS | Windows10, Linux |
| Dimensions | 427*450*175.7 (mm) |
| Weight | 12kg(approx.) |
| Operating Temperature | 0℃ ~60℃ |
| Storage Temperature | -40℃~85℃ |
| Storage Humidity | 40℃ @ 95% RH Non-condensing |
| Power | ATX |
