Jul 21,2024
Industrial automation control server computer.
Intel® Core™ 6/7/8/9 th CPU
128G Memory Support
Dual Gigabit Ethernet Ports Support
HDMI/VGA/DVI-D Triple Independent Display
2 PCI, 2 PCle x16, 3 PClex4

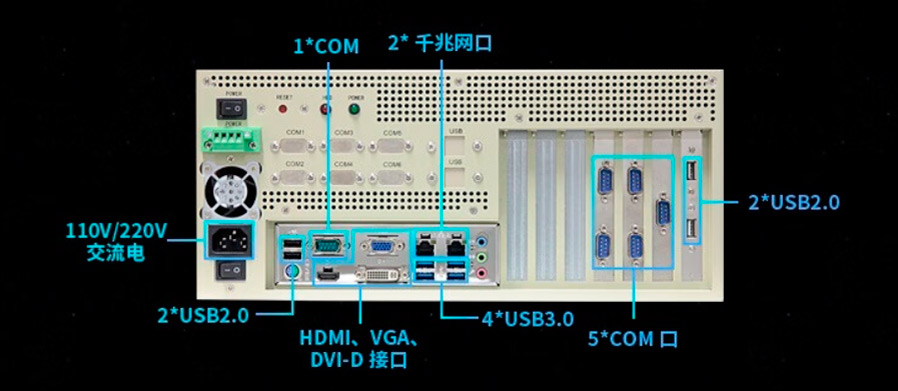

6 COM Ports
Intel® Core™ 6th/7th/8th/9th Generation Processors: Supports Intel® 6th/7th/8th/9th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® processors, LGA1151 Socket, with a maximum power consumption of up to 95W.
Motherboard with Rich Slot Options: Supports dual-channel memory with four U-DIMM slots, compatible with DDR4 2400/2666/2933MHz, and up to 128GB of memory. It includes 2 PCI slots, 3 PCIe x4 slots, and 2 PCIe x16 slots, supporting various module expansions.
Optional Operating System: Comes pre-installed with a trial version of Windows by default. For other operating systems, please contact customer service.
| Model | IPC-307-A2701 |
| Processor | lntel® 6/7/8/9/Core™ i3/i5/i7/i9 |
| Chipset | Intel® Q270 |
| Memory | 4×DDR4 2666/2933UDIMM, up to 128GB |
| Hard Drive | 4×SATA, 1×M.2 SSD |
| Network | 2×intel 10/100/1000Mbps network interface |
| Display | 1×VGA, 1x HDMl, 1×DVI-D, Triple Independent Display |
| Audio | Adopts HDA standard, supports rear panel Mic-in, Line-in, Line-out |
| USB | 8×USB3.0, 5× USB2.0 |
| Serial Port | 6×COM(1*RS232/RS485/RS422, 1*RS232/RS485) |
| Expansion Interface | 2×PCle ×16 slots，3×PCle ×4 slots,2×PCI slots |
| Operating Temperature | -0°C to 60°C; 5% to 95% (non-condensing) |
| Storage Temperature | -20°C to 75°C; 5% to 95% (non-condensing) |

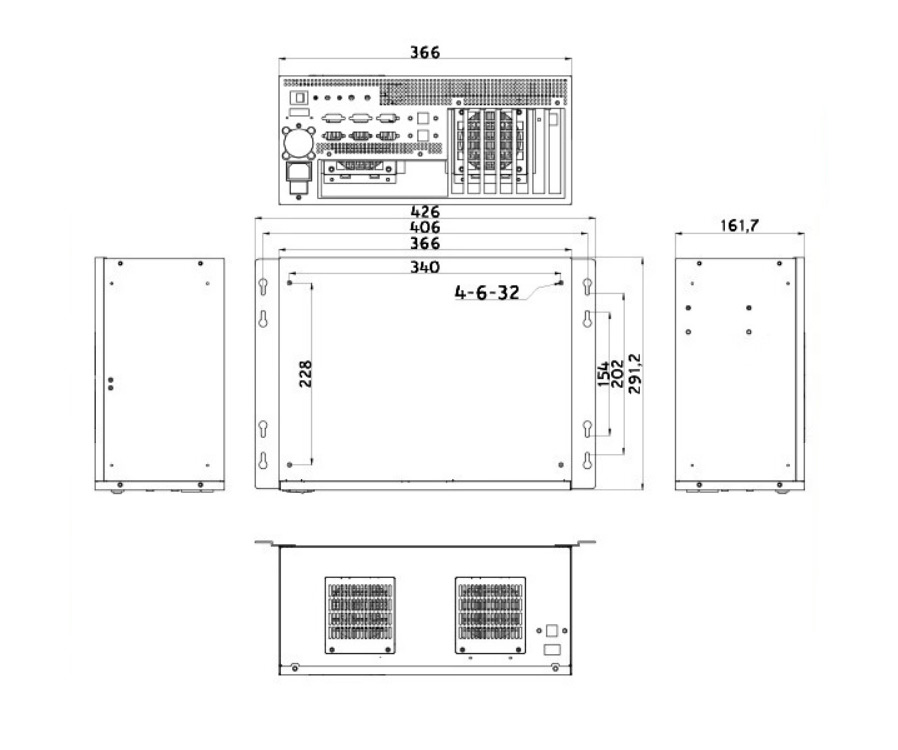

| Dimensions | 366*162*292(mm) |
| Weight | 9kg(approx.) |
| Power Input | 300W (optional 550W) |
| Watchdog Timer | 255 levels, programmable seconds/minutes, supports timeout interrupt or system reset |
| Operating System (OS) | Windows 7/8/10, Linux |
